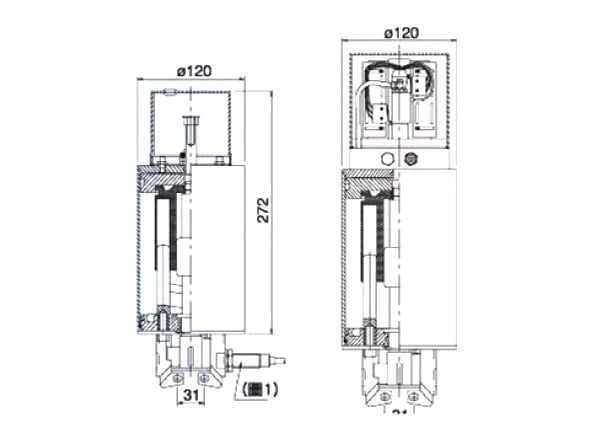

Butterfly Valve Actuator C101

C101 Actuator applies to butterfly valve size 4” of the disc head DIA. 12mm X 12mm.

Control Methods;

Signal Transfer
a. Can be connected with M18 or M12 screw proximity switch (PNP or NPN) as (1)
b. With 10-30 VDC proximity switch contact:
1 or 2 pcs (PNP or NPN)
c. Or 3A 125VAC 30 VDC microswitch: 2 pcs

2-2 Individual Control:
Choice (a), (b) or (c) + DC24 3.0W electric valve 1 pc and air manifold (for complete control box).

3. Air/Air (double effect) actuator or air/spring (simple effect) actuator are available.

4. Accessories: adapter: 1pcs; M6 X 40 screw: 2 pcs; washer: 4 pcs; M6 nut: 2pcs; 1/8pt quick coupler
