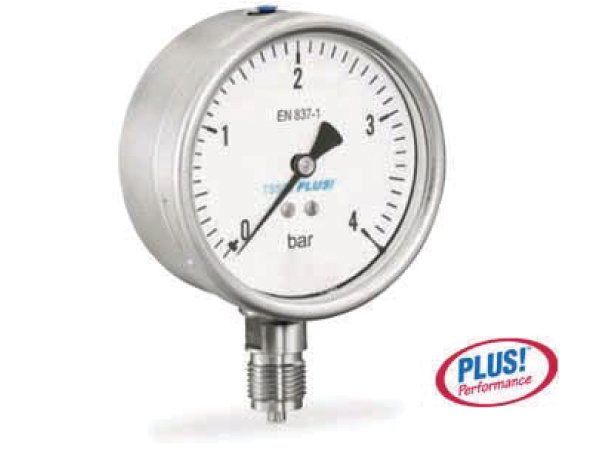

Dry Stainless Steel Process Pressure Gauge

According EN 837-1
Nominal Size: 100mm or 160mm
Rating: IP66/68
Accuracy: Class 1 (DIN)

Features

• Rugged stainless steel construction
• Socket and case welded
• Protection IP65
• Optional ATEX approved
• Usable to full scale
• Overload protection 130%
• Patented liquid-less (PLUS! Gauge)
• Measuring system stainless steel
• Optional contacts

Ranges Available

-1… 0 bar up to 0 … 2500 bar

0 psi up to 0 … 36.000 psi

Application

• Chemical and petrochemical industry
• Machine and apparatus construction
• Food and beverage industry
• Pulp and paper industry
